6-inch ILI Tool

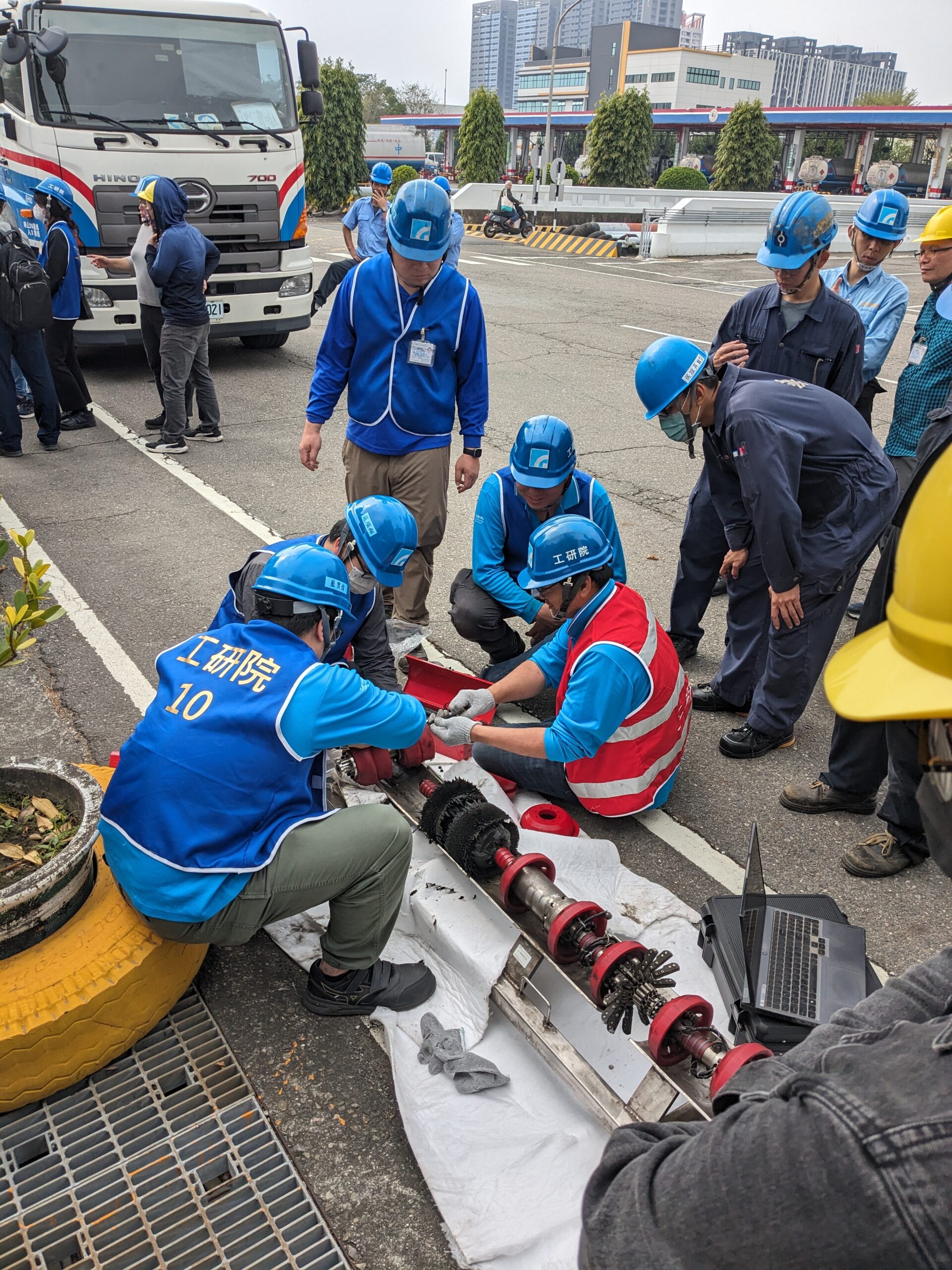

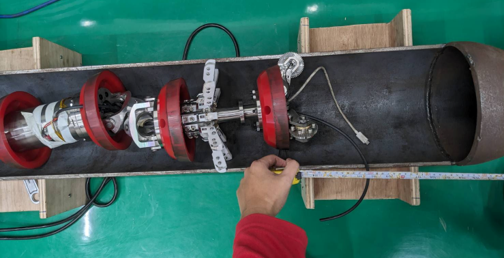

prototype of the 6-inch in-line inspection device

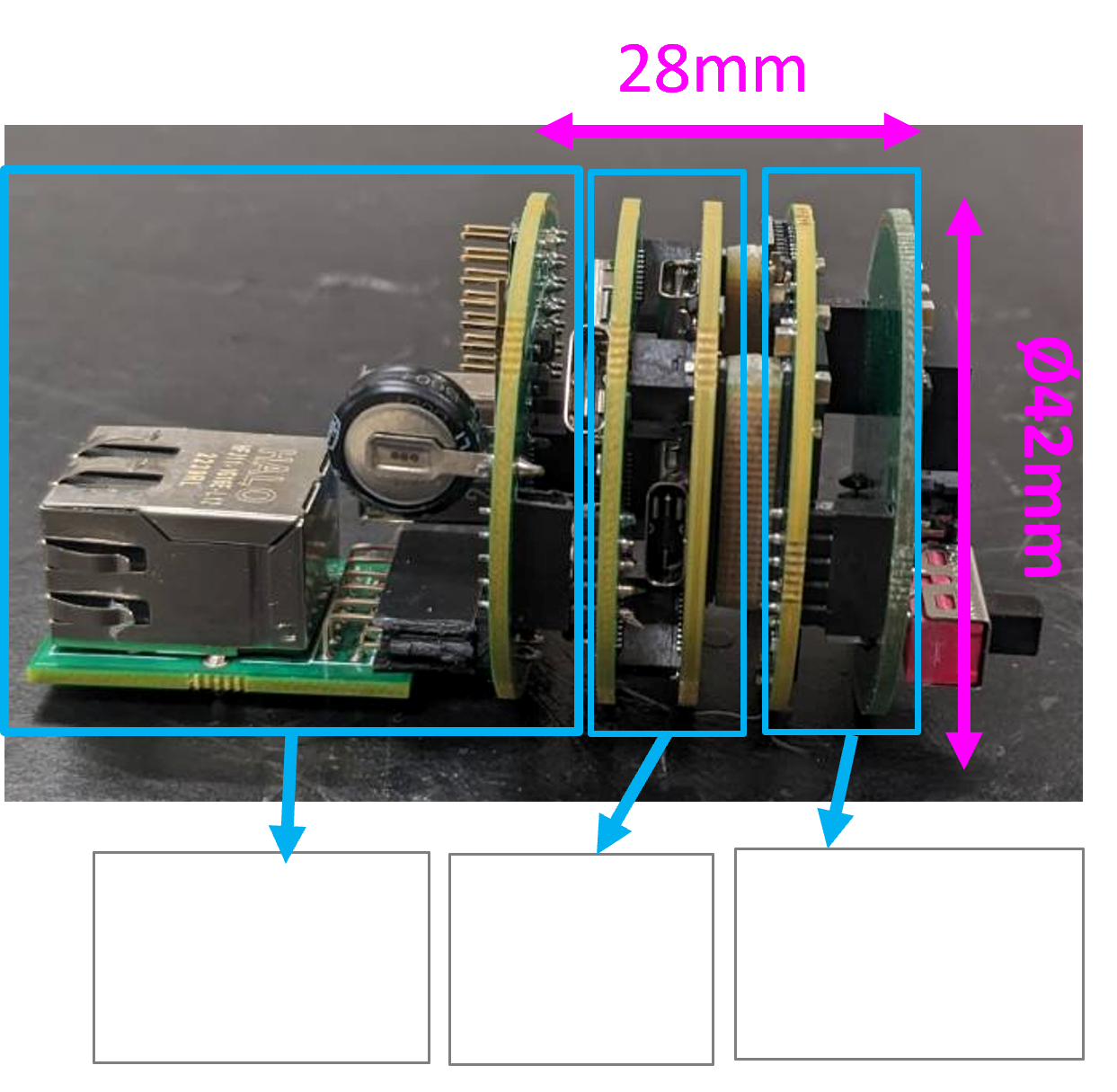

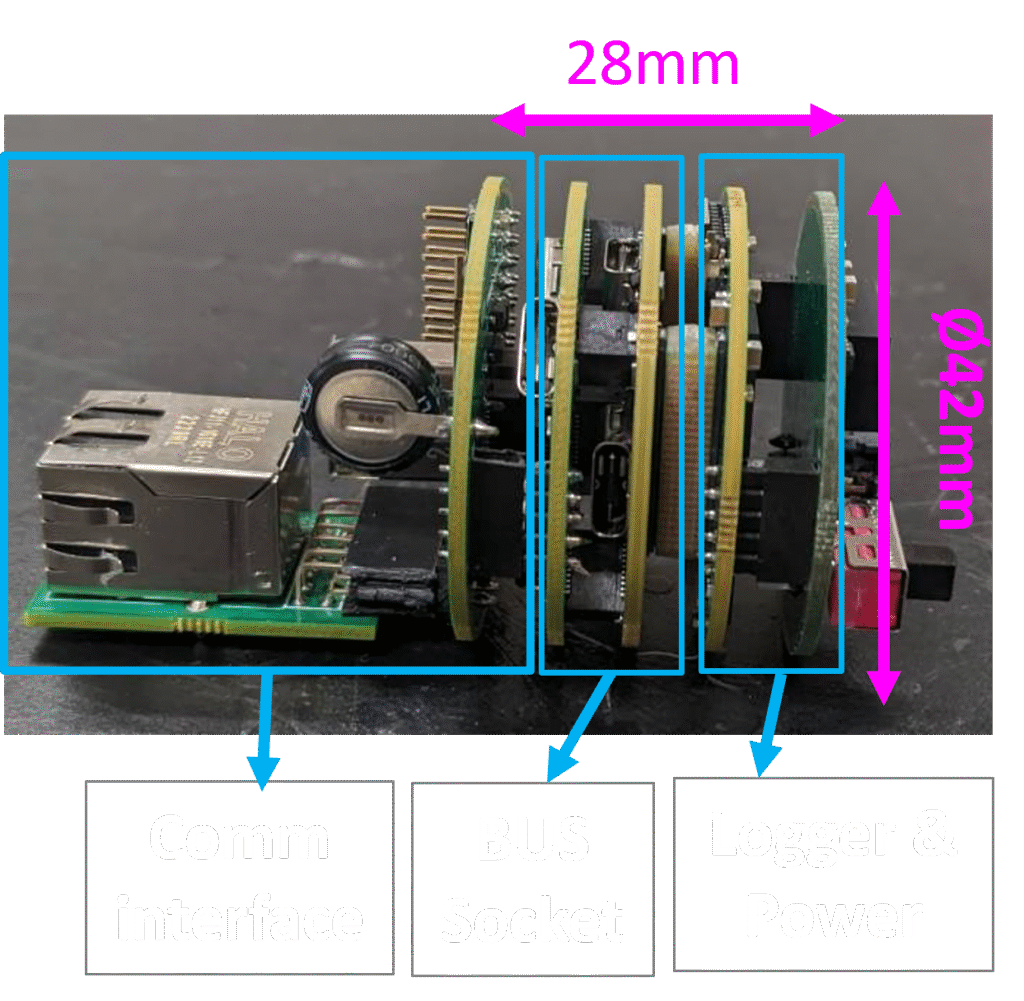

FPGA base ILI logger

OS : ubuntu16.04
Communication : USB,ETH
Sensor protocol : Customized
Storage : SD card
Support 64 channel hall sensor
Build in Inclinometer

MFL Tool

PropertySpecification
Tool sizes available6”,8”
Total Length2130mm
Weight59.5kg
Sections6
Maximum Wall thickness10.97mm
Minimum Wall thickness7.11mm
Maximum Pressure100bar
Temperature range0 to 80˚C
Maximum Speed5m/s
Bend passing1.5D 90deg
 General metal lossPittingAxial GroovingCircumf. GroovingCircumf.  Slotting
Depth at POD = 90 %0.1t0.1t0.1t0.1t±0.15t
Depth sizing accuracy at 80 % certainty0.1t0.1t±0.15t0.1t0.1t
Width sizing accuracy at 80 % certainty±1mm±1mm±1mm±3mm±3mm
Length sizing accuracy at 80 % certainty±1mm±1mm±1mm±3mm±3mm

Clip Tool

PropertySpecification
Tool sizes available6”,8”
Total Length1475mm
Weight31.3kg
Sections4
Caliper Arms12
Axial Sample Resolution1mm
Circumferential Arm Resolution40mm
Radial Measurement Resolution0.5mm
Odometer Channels3
Run time70hrs
Bend passing1.5D 90deg
Temperature range0 to 80˚C
Maximum Speed3m/s
